Architectural Metal Screenwalls & Grille Assemblies

Metalwërks® Screenwalls and Grille Assemblies are manufactured from a wide variety of materials, including formed or extruded metal profiles, perforated metal panels, woven architectural mesh, and bar grilles. These systems are engineered to ensure structural integrity from the outside face of the cladding element to the primary building structure. Metalwërks selects assembled components from only the highest- quality architectural commodity producers. These can be designed for pre-assembly at our facility or knocked down (“K/D”) if site logistics permit.

  • All
  • Grilles
  • Fins
  • Wire Mesh
  • Exposed Frames
  • Concealed Frames
  • Perforated Panels
  • Laser/Water Cut
  • Unitized or knocked down depending on project logistics or installation preference
  • Long life solid metal assemblies for ultimate durability, with damage-resistant finishes
  • Non-Combustible: minimal smoke or fuel contribution
  • All panel systems are reinforced/stiffened to resist deflection limits
  • Dismountable or operable as desired
  • 100% recyclable and manufactured from materials with high post-consumer/industrial content which can contribute to LEED credits
  • Exposed structural elements manufactured from non-ferrous aluminum or stainless steel that will not rust (unlike galvanized steel or AESS-coated steel)
  • Virtually limitless palette of colors, finishes, and textures to complement, enhance or contrast other façade types
  • Aluminum: “Long life” high performance finishes are post applied for the highest quality of coverage and uniformity
  • Available in no-VOC powder coated finishes
  • Finish warranties up to 20 years (coated aluminum) – Consult Metalwërks for limitations

FEATURES

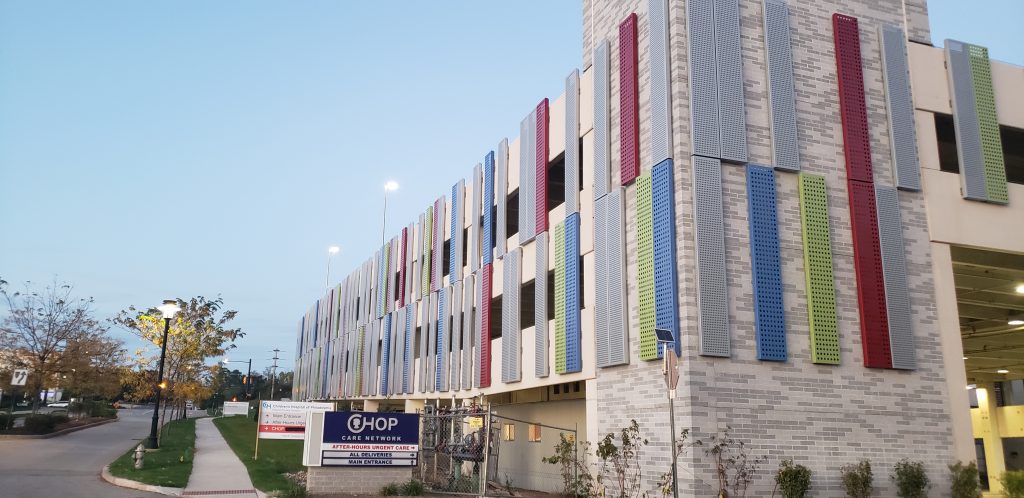

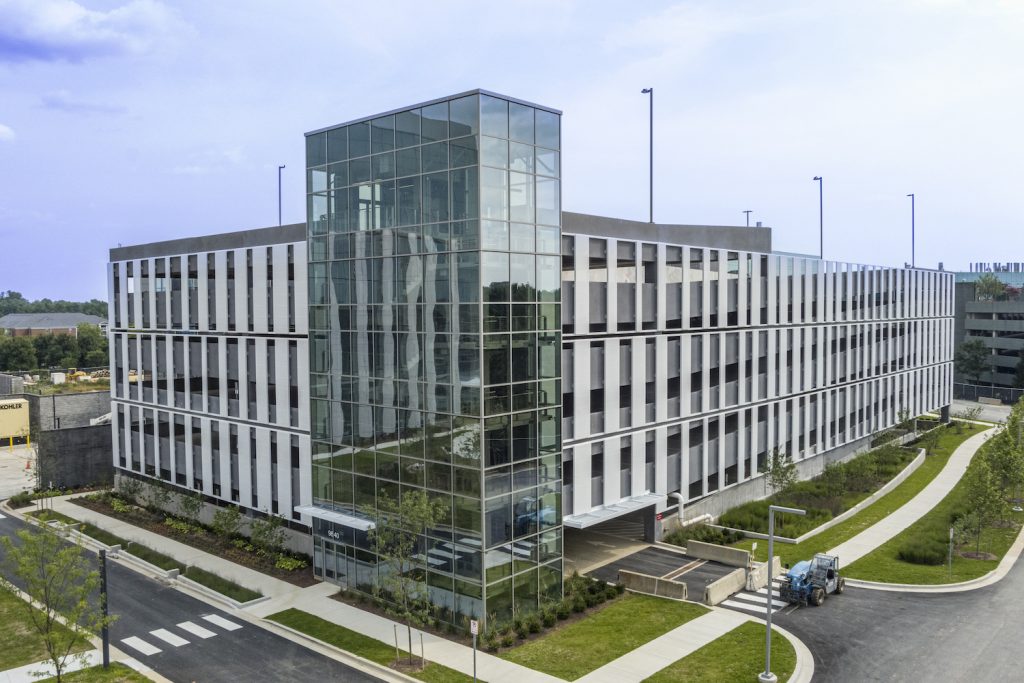

  • Provide shading, heat reduction, and ventilation for parking garages, glass curtain walls, or glazed assemblies

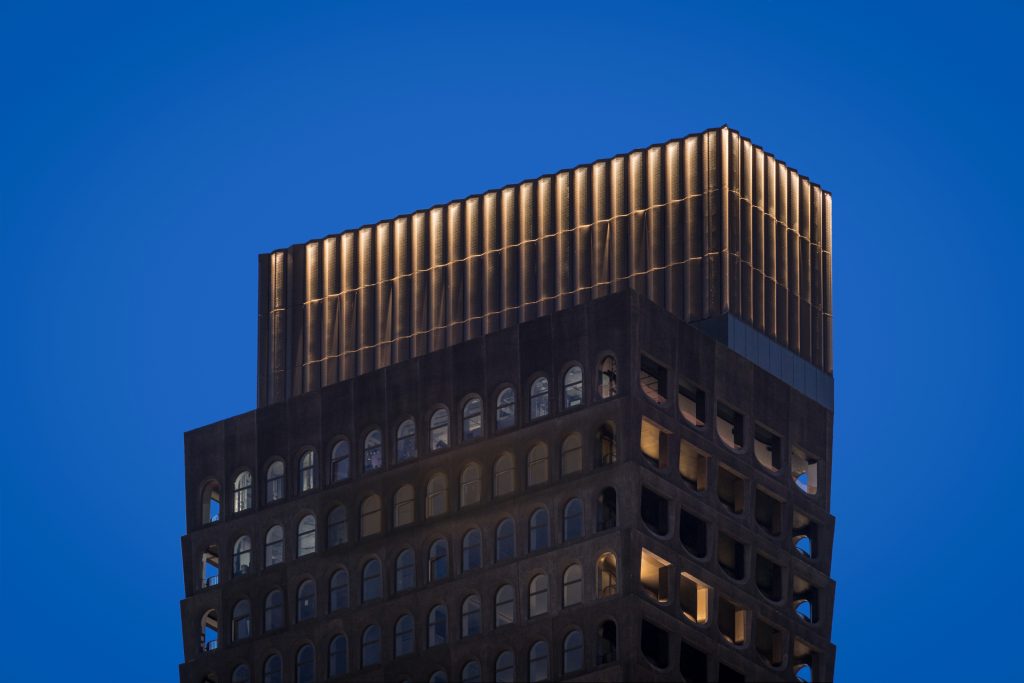

  • Conceal mechanical equipment on rooftops or plaza-level enclosures
  • Serve as backdrop for branding, murals, signage, or banners
  • Add texture to an exterior face and/or create dramatic surfaces for unique building designs Enhance privacy for occupants and/or neighboring properties
  • Visually complement or contrast with Metalwërks plate wall system
  • Break up the scale of large structures
  • Beautify an otherwise plain precast or masonry wall
  • Diffuse direct sunlight from penetrating a curtain wall or windows
  • Provide screening for security purposes
  • Separate occupied spaces on balconies, terraces, or streetscapes

NOTE: Systems included in this brochure are often found in spec section 10240 Grilles and Screens, 074216 Metal Panel systems, or 05700 Ornamental Metals.

USES & BENEFITS

Framing Options:

  • Exposed Frame Assemblies: With a frame designed to span from floor to floor and featuring an infill of architectural metals, this assembly replicates the appearance of a framed window or louver.
  • Concealed Frame Assemblies: With the facing materials covering the frame to create a floating effect, the frame assembly is recessed behind the infill materials and the joints between units are usually minimized.

Assembly Options:

  • Grille Assemblies: Grilles attach to the building substrate and create a visual screening from the building behind. These can be assembled with an array of tube and solid metal shapes, or water and/or laser cut to create patterned effects.
  • Fin Assemblies: Fin assemblies can be made of Custom Formed elements, Extruded, or structural shapes to form a unique grid pattern.

Infill Options:

  • Perforated Panels: Perforated panels can allow for proper airflow, visual screening, or other lighting effect. This can be accomplished by varying the perforation hole sizes or the pattern by using a straight, random, or staggered pattern or even custom pattern to create an image. The holes can also vary in shape by using rounds, squares, and oblong shapes to name a few.

ALL-METAL CONSTRUCTION

When combined with our façade cladding products – Omniplate™, Arcwall™, and Arcwall™ – the designer can use a singular finish for all metal elements, visually unifying the façade. For example, walls, canopies, and column cladding can be confidently color-matched with roof trellises, grilles, and screenwalls.

All Metalwërks systems are made exclusively from solid metal – no plastics or composite materials are used.

Metalwërks avoids all plastics because:

  • We do not want to contribute to the production and dissemination of petroleum-based plastic materials as they are noxious, toxic when burned, and often combustible
  • Plastics rely on the production of hydrocarbon-laden feedstock components
  • Plastics are harmful to watersheds and landfills Metalwërks uses only high-quality metal because:
  • Aluminum and stainless steel are highly valued materials and are widely recycled – no scrap goes into waste streams or landfills
  • The metals we use contain a high percentage of recycled content

METAL SUBSTRATE AND FINISH OPTIONS

Aluminum Plate:

  • 3003-H14 aluminum alloy-temper
  • Thickness: 0.125” (3.18mm) standard, 0.188” (4.78mm), 0.25” (6.35mm) options – consult with Metalwërks for additional options.
  • Finishes: Kynar® or architectural TGIC Polyester powder coating

Stainless Steel:

  • T304 or T316 for enhanced corrosion resistance
  • Thickness: 14 gauge (0.078”) (1.98mm) standard, 11 gauge (0.125”) (3.18mm), 12 gauge (0.109”) (2.78mm), 16 gauge (0.063”) (1.60mm) options
  • Finishes: #4, #6, #8 and non-directional satin in smooth or custom embossed patterns

PERFORATED OPTIONS/PATTERNS

  • Subject to material selections, conventional round, oblong, or square holes
  • Custom tool patterns and random spacing to match graphic designs/li>
  • Available with non-perforated borders

WIRE MESH OPTIONS

  • Custom and standard aluminum or stainless steel patterns and wire weave options
  • Opening areas: opaque to 80% open areas – standard 1″, 1.5″, 2″ square options
  • Mounting methods with integrated mullions: Inset or Outset
  • Finishes: Kynar®, anodized aluminum, or architectural TGIC Polyester powder coating

EXTRUDED OPTIONS

Tubular Aluminum

  • Square standard sized: 1″ x 1″ up to 6″ x 6″
  • Rectangular standard sizes: 1″ x 2″ up to 2″ x 8″ – customizes up to 12″ deep
  • Round sizes: 1″ – 6″ diameter
  • Custom profiles & sizes: Available in lot sizes of minimum 1,000 ft2 (or lbs)
  • Custom airfoil, trapezoid or tapered styles

FORMED OPTIONS

Aluminum Plate

  • 3003-H14 aluminum alloy-temper
  • Thickness: 0.125″ (3.18 mm) standard, 0.188″ (4.78 mm), 0.25″ (6.35 mm) options. Consult with Metalwërks for additional options.
  • Finishes: Kynar® or architectural TGIC Polyester powder coating

FLAT PLATE OPTIONS

Aluminum

  • Thickness: 0.125” – 1” (dependent upon gauge and geometry)
* Patent Pending
