Rainscreen Wall Systems

Engineered for freedom and performance

Metalwërks® rainscreen wall systems are engineered to provide advanced long-term performance in thermal and moisture protection, with as few limitations to design freedom as possible.

Achieve advanced thermal performance and moisture protection

All Metalwërks rainscreen systems feature dry joinery and create a drained and ventilated cavity behind the wall to manage moisture effectively by returning rain water to the exterior of the building and allowing the wall cavity to dry quickly after a rain event. Plus, Metalwërks rainscreen systems permit continuous outboard insulation for maximum thermal efficiency.



Three design series with unique aesthetic capabilities

Metalwërks manufactures three distinct families of metal plate rainscreen wall systems – Sculpted™ 3D, Arcwall™ and Ameriplate™. Each family provides unique aesthetic capabilities.

In addition, for areas of a building that may not require the robust durability of metal plate cladding soffits for example – or where cost reductions are desired, Metalwërks Econowall™ is an excellent choice. Compared to Metalwërks plate-based systems, Econowall rainscreen panels are made from lighter gauges of aluminum, stainless, or zinc that visually integrate with other Metalwërks wall systems.

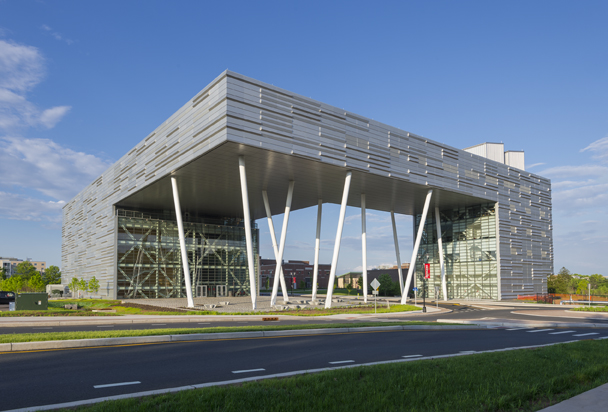

Sculpted 3D - Rutgers

Sculpted™ 3D Rainscreen Wall Systems

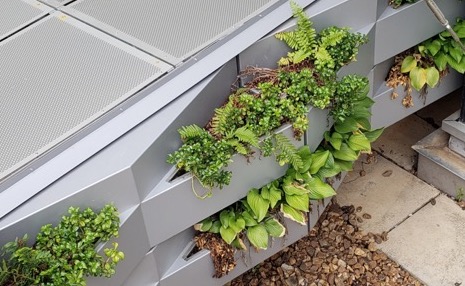

Experience the pinnacle of bold facade design featuring three distinct 3D wall panel design schemes. Integrated options for LED lighting and irrigated vegetation elevate design and functional possibilities to entirely new heights.

Explore now >>

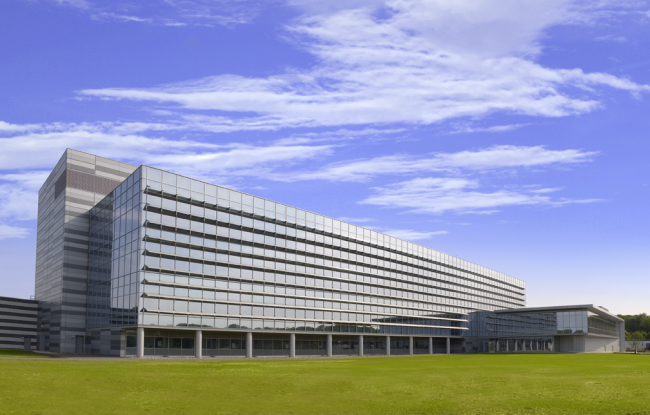

Arcwall Overview - NJ Pubic Health

Arcwall™ Rainscreen Wall Systems

Metalwërks’ legendary Arcwall systems combine a high design freedom with outstanding performance. Arcwall panels – face and returns – are formed entirely from a single sheet of metal plate. Corner seams are welded and meticulously ground smooth to a seamless monolithic appearance. Panels can be flat, curved, or manufactured with a custom three-dimensional form according to your vision. There are two available system options: Arcwall and Arcwall Advanced.

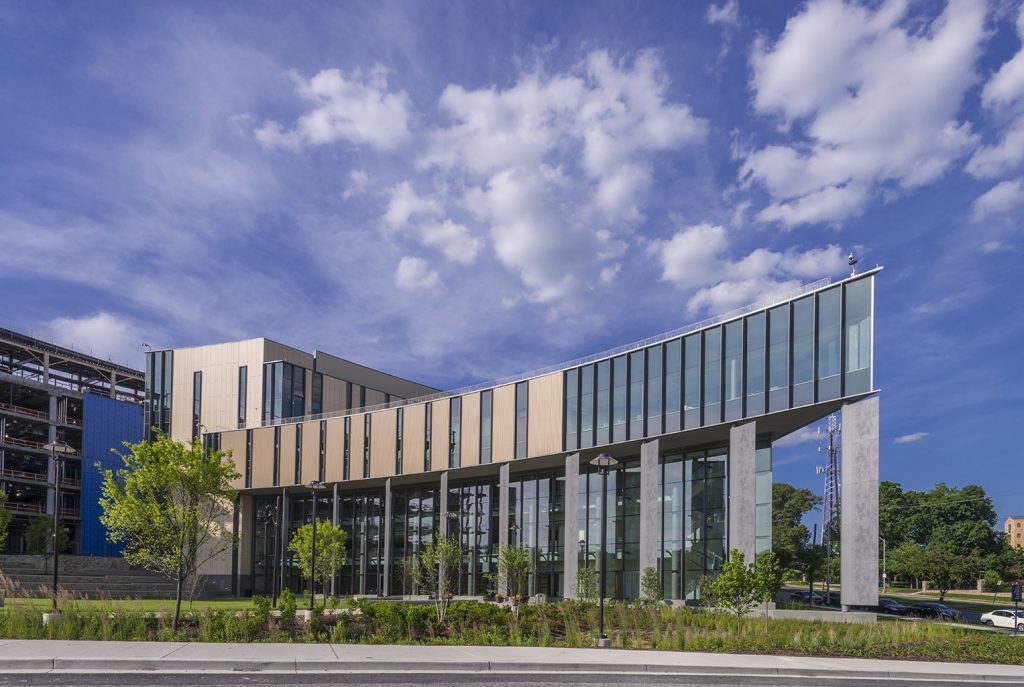

Arcwall - Morgan State University

Arcwall™ Rainscreen Wall Systems

Arcwall is an economical drained and back-ventilated rainscreen system for both walls and soffits manufactured from formed aluminum or stainless plate. The system combines excellent performance with a high design flexibility.

Explore now >>

Arcwall Advanced - 3737 Market Street

Arcwall Advanced™ Rainscreen Wall Systems

Achieve the ultimate in moisture management with this AMMA 508 tested and certified pressure-equalized rainscreen wall system, featuring optional compartmentalized cavity for the most advanced moisture protection.

Explore now >>

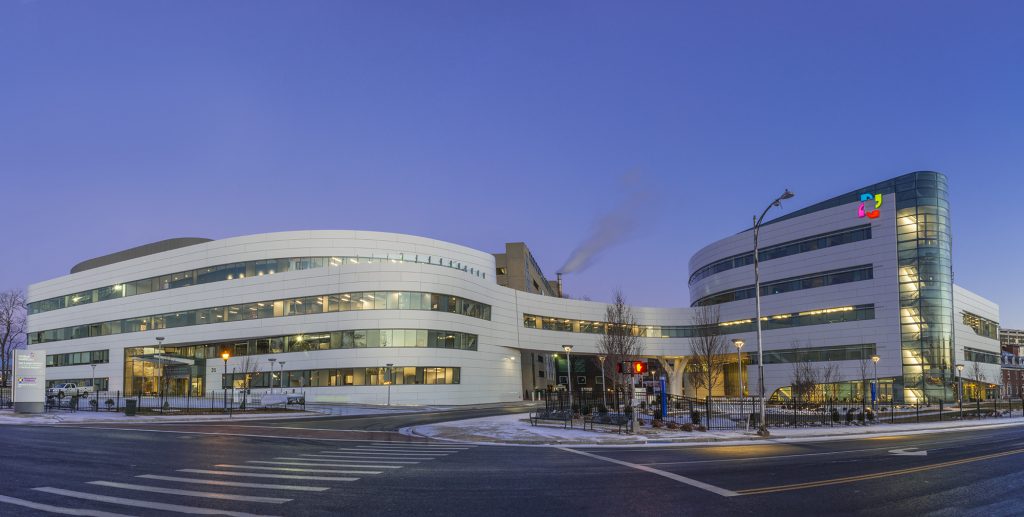

Ameriplate - Hartford Hospital

Ameriplate™ Rainscreen Wall Systems

Efficiency and fascinating free-floating effects are hallmarks of Metalwërks Ameriplate wall systems. With Ameriplate, the cut edges of the face plate material are the panels’ edges, a capability in metal you can only achieve with plate. When Ameriplate attachment hardware is concealed from view, architects achieve a fascinating floating panel effect.

Explore now >>

Econowall - Morgan State University

Econowall™ Rainscreen Wall Systems

For areas of a building that may not require the robust durability of metal plate cladding soffits for example – or where cost reductions are desired, Metalwërks Econowall is an excellent choice. Compared to Metalwërks plate-based systems, Econowall rainscreen panels are made from lighter gauges of aluminum, stainless, or zinc that visually integrate with other Metalwërks wall systems. And like Arcwall panels, Econowall panels may be flat or formed into three dimensional shapes.

Explore now >>

* Patent Pending
